Dental implants coated with a combined surface CELLBIOTex® - DOT-GmbH

Dental Coatings - CELLBIOTex®


Technology

The CELLBIOTex® surface is a combination of a subtractive surface (corundum blasted, acid etched) and an additive surface (BONIT® coating) with optimum roughness.The additive surface of the CELLBIOTex®layer is a completely resorbable, thin, fine crystalline and firmly adherent calcium phosphate coating. CELLBIOTex® is only available for pure titanium implants.
Range of Application

Dental implants
Advantages of the Procedure
  • Complex surface structure & surface enlargement
  • Active support of bone apposition
  • Increased wettability/high affinity for blood
  • Greater osteoconductivity of the surface

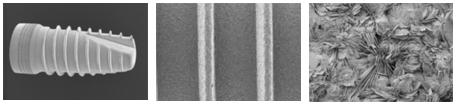

SEM pictures of the CELLBIOTex® surface
SEM pictures of the CELLBIOTex® surface
Properties
  • Color: light gray
  • Coating thickness: 5±3 µm
  • Porosity: 60 %
  • Adhesive strength: ≥ 15 MPa
  • Ca/P ratio: 1.1±0.1
  • Microstructured surface topography
  • Bioactive, resorbable calcium phosphate coating based on brushite for further surface enlargement
  • Highly biocompatible (BONIT® coating)

Contact us - we are pleased to advise you!
